RACETORX brake junction valves Thumb brake hydraulic link kit

£43.33 GBP

Shipping calculated at checkout

Racetorx SKU: RTX450 Barcode: RTX450

Racetorx Junction Valve.

Having your thumb brake or finger brake installed in conjunction with your rear master cylinder has never been easier!⁠

Our Junction valves are dual-fitting kits.

Junction valves go into the rear (foot) master cylinder and allow both Thumb brakes & scooter brakes to work in conjunction with the footbrake master cylinder.

⁠
So far we offer 5 types-

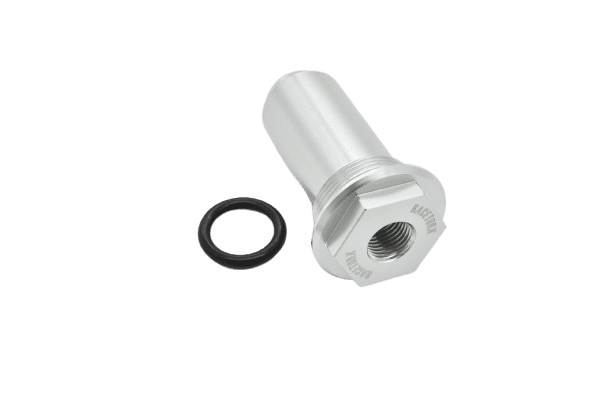

  • RTX450 which is used in the likes of Brembo Master cylinder Part number – 10850560
  • RTX452 is a Teardrop shape with a M4 bolt this is used in Brembo, Nissin and aftermarket master cylinders

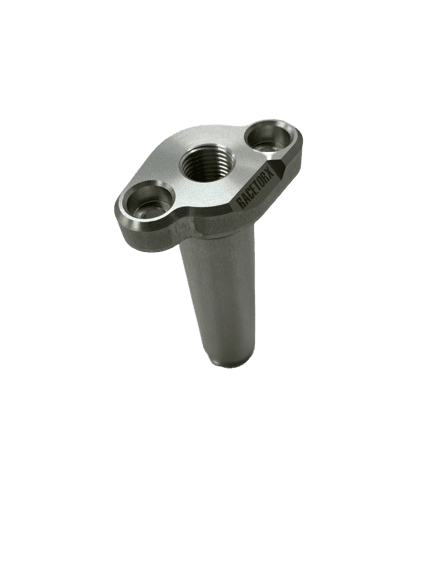

  • RTX477 is the Titanium long neck type which fits in Nissin and aftermarket type master cylinders with a plastic nipple and circlip, ID = 18.5mm (Due to the size of the long neck type you require x4 standard copper washers or x2 2mm copper washers)
  • RTX479 is the Titanium long neck type, this is suited for some Brembo & aftermarket type master cylinders with a plastic nipple that can spin, ID 14mm. (first of its kind) for OEM brembo masters like on the KTM superdukes etc) (Due to the size of the long neck type you require x4 standard copper washers or x2 2mm copper washers)
  • RTX506 is used on Yamaha YZ and WR models which though they are in stock, there are two versions of the same master cylinder with very slight differences that we are still testing.

The Plastic nipple type master cylinders are pushed in with a rubber doughnut, you can pry these out with a set of players to fit the Longneck junction valves

 Please contact us if you are unsure, See the list below for what fits what so far.

A DOUBLE BANJO ON THE REAR (FOOT) MASTER IS NOT THE SOLUTION AND WILL NOT WORK THIS IS WHY JUNCTION VALVES ARE REQUIRED.

Thumb brake-

Tenere 700 (NOT COMPATABLE) An alternative to be offered

MT10 2016-2020 (NOT COMPATABLE) An alternative to be offered

MT09 2016-2022 (NOT COMPATABLE) An alternative to be offered

MT07 2014-2022 (NOT COMPATABLE) An alternative to be offered

SXR 700 / 900 (NOT COMPATABLE) An alternative to be offered


This is only a small few of the fitments we have listed, contact us to find out which suits your bike if unsure.



Fitment






RTX450

RTX452

RTX477

RTX479

Aprilia






Aprilia RSV4



Aprilia 660


Aprilia RV4



Aprilia Tuono 125





Tuono Gen2





RSV





RSVR





Falco





Dosoduro 750





Dosoduro 1200






BMW








BMW GS range

S1000RR





F800





R850R





R1200





R9T






Ducati









All






Honda







MSX GROM 125

CRF 250 2020




CBR900RR 99

CBR1000RR 08 to present




CB/CBF 125 19

CBR1000RR-R (SP)




Hornet 600 CB600





Hornet 900 CB900





NC750x





NT700v





CB650 R/F





929





CB1300





CB400





CB1000R





CBR1000 93-99





CBR1000RR 04-07








HUSQVARNA






125/250/300 14-17





FE 250 / 350 / 450 / 501 14-17





FC 250 / 350 / 450 2014-2020









Suzuki







Hayabusa

GSXR600 06-21




GSX 750 2019

GSXR750 06-21




GSXR125

GSXR1000 09-21




Bandit 400





GSXR600 97-05





GSXR750 97-05





GSXR1000 01-08





SV650 03-15





SV1000 03-07








Triumph








Speed tripple





Street tripple





Speed 1200





Trident 660







Kawasaki








ALL







KTM






KTM 250SX

KTM 400 RXC


KTM 400 SX


KTM SXF 350

KTM 250 EXC


KTM 690 SMC


KTM 450 SXF RFS SXS



KTM 1290 Super Duke 2015+


KTM 125 SX



KTM EXC 200


125/200 EXC 14-16



KTM SXC 625


250/300 EXC 14-20



ktm LC4 580 600 620 640


150 EXC 2020



SX-F 400 / 520 2001-2002


125/200 EXC 14-16



EXC-F 450 / 525 2003


EXC-F 250 / 350 / 450 / 500 2014-2020



SX 125 / 250 2001-2003


SX-F 250 / 350 / 450 2014-2020



EXC-F 400 / 450 / 520 2001-2002


SX 125/150/250 2014-2020



KTM Super Duke R 1290 Gen1 2014-2016





KTM Super Duke R 1290 Gen2 2016-2019





KTM Super Duke R 1290 Gen3 2020-2022





KTM Super Duke RR 1290 2021-2022





KTM Super Duke 1290 GT 2015-2022





KTM Super 1290 Adventure 2015-2021





KTM 1090 Adventure





KTM 1190 Adventure





KTM Duke 690 SMCR 2015+





KTM Duke 790 Adventure (R)





KTM Duke 790 2018-2020





KTM Duke 890 2020-2021





Husqvarna 701 Supermoto 2016+





Husqvarna 701 Vitpilen 2018+





Husqvarna 701 Svartpilen 2018+






MV








All







Yamaha




Tenere 700 (NOT COMPATABLE)



R1 98-03

R1 2004 - 2006 (Please check first)

MT10 2016-2020 (NOT COMPATABLE)



R6 99-02

R1 2007 -2022

MT09 2016-2022 (NOT COMPATABLE)





MT07 2014-2022 (NOT COMPATABLE)





SXR 700 / 900 (NOT COMPATABLE)










R6 2003-2022





XT660





fz6 07-09





fz1000 01-12





tdm 850/900 96-02


If you have any additional questions over this or any other tuning modification, please do not hesitate to get in touch. Kind regards P3 Tuning Ltd





Available Now!
Type: RTX450 - Brembo Cylinder
Titanium bolt: Yes
