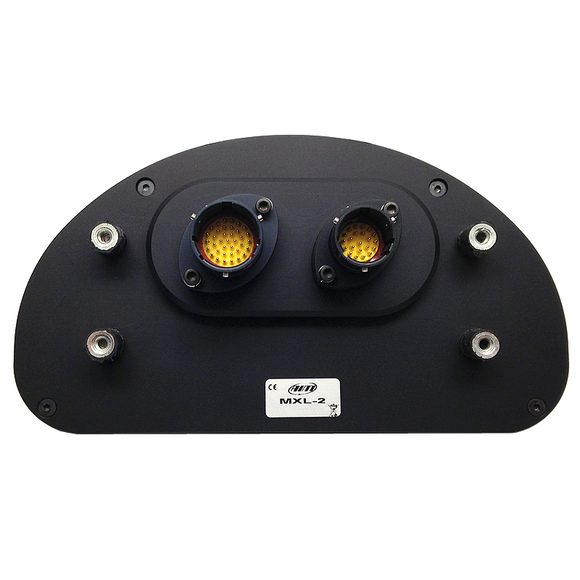

Aim MXL2
A wide range of data sources
The Aim MXL2 is the new dash logger that provides all the data needed by professional race drivers to monitor the performance of the car and their driving style. The product has been designed with the aim of making configuration and usage smooth and easy either for any level of driver.

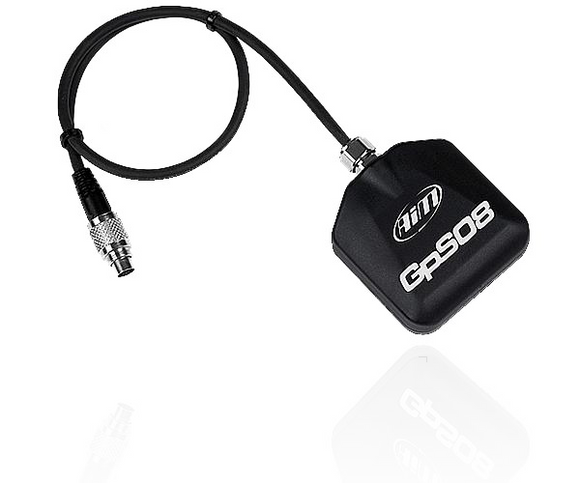

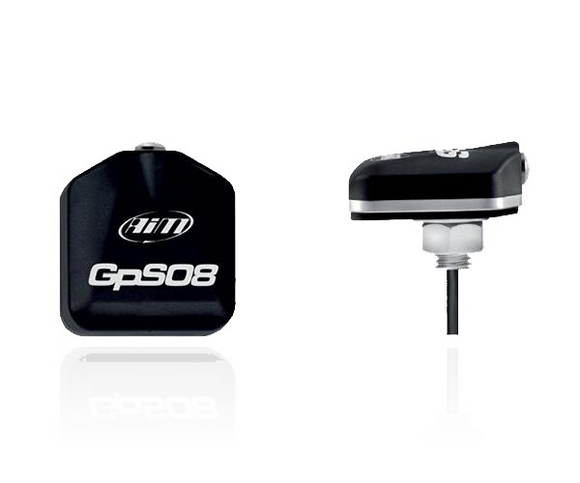

Aim MXL2 acquires and displays data from your engine ECU, the internal accelerometer and gyro, as well as from the GPS module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
Custom Pages
You can define up to eight different custom pages,
choosing among a wide library of page styles,
defining which data to be shown,
their end of scale and measure units.

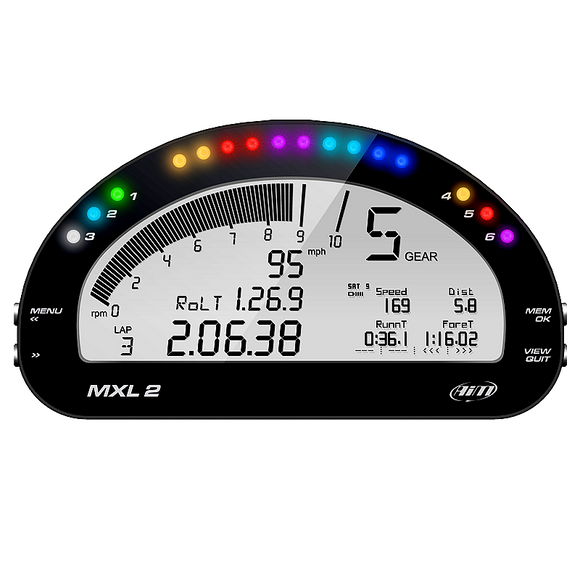

This image shows examples of pages
with 1, 2, 3 or 4 different data.
Flexible Alarms
Six different alarm LED’s. You choose the conditions, the colours and the flashing frequency. You can also configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, GPS information or math channels. You can also associate an alarm LED a message and a digital output with each event.
Two Digital Outputs
Aim MXG 1.2 Motorcycle Dash Data logger features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Integrated Shift Light Array

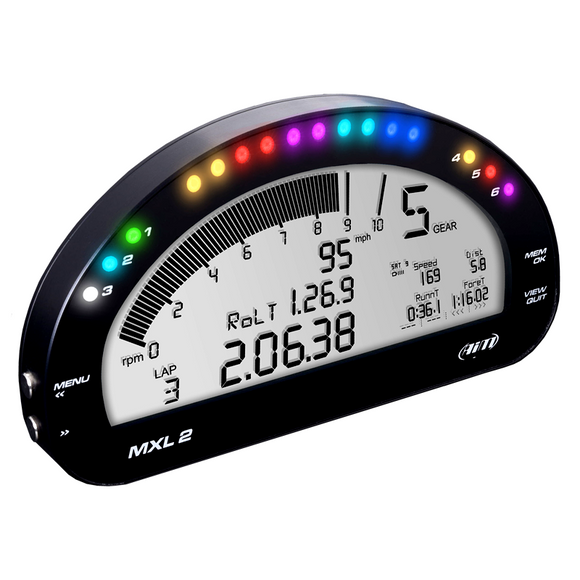

An integrated shift light is a hallmark of the MXL, but an even better 10 LED shift light array is found in the MXL2. Choose from a host of advanced multicolour RGB shift light patterns that can be customized to your liking, and for each unique gear when required.
Expand the system, according to your needs
Connection Example
Race Studio 3
Race Studio 3 is the heart of your MXL2 managing all your activities related to:
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by MXL2 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
A wide range of data sources
Wi-Fi connectivity
Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.
Downloads
Technical sheet and product history ver. 1.07
Harness for MXL2/MXG/MXS ver. 1.06
Harness of 22 pins Deutsch connector with 1 thermocouple for MXL2/MXG/MXS ver. 1.00
Harness of 22 pins Deutsch connector with 2 thermocouples for MXL2/MXG/MXS ver. 1.00
Harness of 37 pins Deutsch connector with 1 thermocouple for MXL2/MXG/MXS ver. 1.00
Harness of 37 pins Deutsch connector with 2 thermocouples for MXL2/MXG/MXS ver. 1.00
UBS adapter for MXL2/MXG/MXS ver. 1.05
Installation template (scaled 1:1)
MXL-MXL2 generic adapter harness
MXL-MXL2 Radical adapter harness
