Plug. Play. Improve.

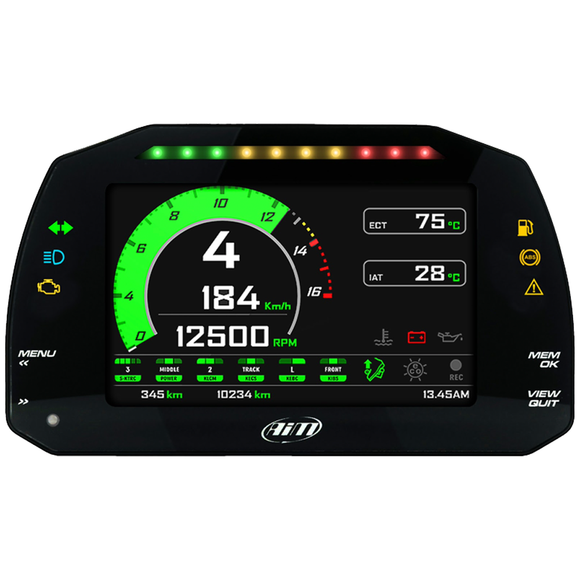

The AiM MXK10 is specific to the Kawasaki Ninja ZX-10R Gen 5 and is completely compatible with the original wiring and is supplied with a mounting bracket for hassle free fitting.
High contrast 5" TFT display. Fully Plug & Play. Two Can Connections. 10 Shift Light LEDs. 6 status RGB LEDs. GPS Module included. Wi-Fi Connection.
It is completely compatible with the original connector and bracket fixings points on your bike and is the perfect tool for track day bikes as it allows you to monitor and record the parameters of your bikes performance.
The data can be used to highlight faults or to see where improvements can be made from the bikes setup or riders lines or braking points.
With 4 GB data recording and USB or Wi-Fi connectivity for downloading data all your race information can be downloaded to Race Studio 3.
Easy adjustment on the bike parameters such as ECU maps, traction control, suspension settings, anti-wheelie and ABS will help in gaining those precious seconds.
GPS lap timing with built-in track recognition
Records all data from the bikes ECU

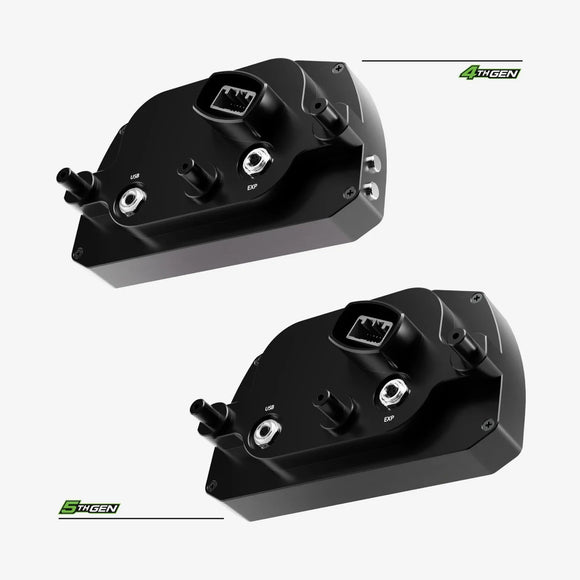

Expansion port allows additional sensors or AiM SmartyCam camera to be added.
Easy adjustment on the bike parameters such as ECU maps, traction control, suspension settings, anti-wheelie and ABS will help in gaining those precious seconds.
GPS lap timing with built-in track recognition
Records all data from the bikes ECU
Expansion port allows additional sensors or AiM SmartyCam camera to be added.
Please Note: The MXK10 dash can be programmed with your current mileage. Please state your required mileage in miles or kilometres in the notes section on your order.
Display

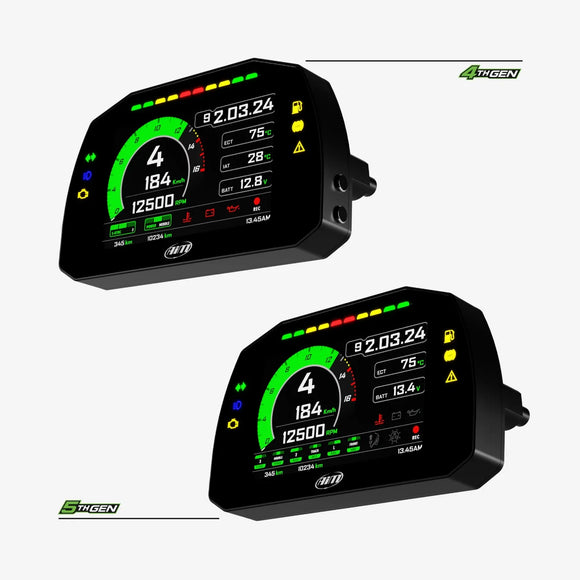

The MXK10 features a high contrast 5" display, allowing you to read your data on a crystal clear screen whatever the conditions. The dash is lightweight and with the added aluminium body parts it looks good too.

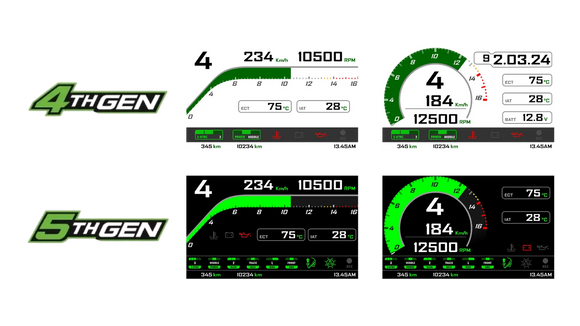

The display is fully configurable and can show any data you want to see, RPM, shift lights, high beams, direction arrows, engine problems, ABS, fuel flow level and alarms like water temperature, battery and oil pressure.
Lap Timing & Data Logging
The dash is supplied with a GPS Module with a 50cm cable accurate lap timing and track mapping, with inbuilt track recognition software. So, switch your bike on near a track recorded in the database the GPS Module automatically recognises it, loads the start/finish coordinates and calculates lap times when those coordinates are crossed. If the track is not on the database you can create and load it using Race Studio 3 software.
The MXK10 features two working modes: road and track. In track mode, the lap pushbutton can be disabled to avoid confusion between GPS signal and lap button, while in Road mode lap button is always enabled and GPS Module is always disabled.
Expand Your System
These are only some of the items that can be added to our MXK10 for improving performance and the data acquired.
Configure & Analyse with Race Studio 3
Configuration
With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
Analysis
With Race Studio 3 you can also analyse all data recorded by MXK10 GEN5 and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
