The MXS 1.3 Strada has a choice of ECU connections. Choose between the OBDII or K-Line CAN. Depending on whether you want to connect to the motorcycle's ECU using the OBDII port or directly to the ECU through the CAN channel.
Connecting the MXS 1.3 Strada dash to your motorcycle's ECU is simple; you can sample and display dozens of channels. This is usually the quickest and easiest setup, needing only 2 cable connections to the ECU instead of multiple connections to analogue sensors.
The sampled data depends on the actual ECU, but will typically include RPM, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear, and lambda value (air/fuel ratio). The list of available ECU drivers is over 1,000 and is constantly being updated and upgraded.
The MXS 1.3 Strada features a 1-AMP digital output configurable to be activated/deactivated depending on the value of the analogue/digital inputs or on the impulses coming from the motorcycle’s ECU. This allows you to automatically run external systems, such as switching on/off additional lights, to activate/deactivate a cooling fan or circulation pumps when a certain event happens.
With CAN output, you can send messages directly to an existing CAN network to improve the range of the motorcycle's control possibilities.

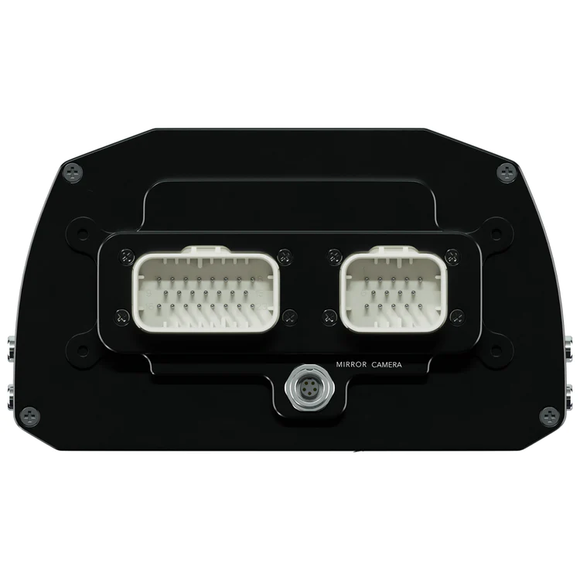

Two analogue camera inputs are also available to switch your display into a mirror camera, through a push button command or event management. The camera is sold separately.

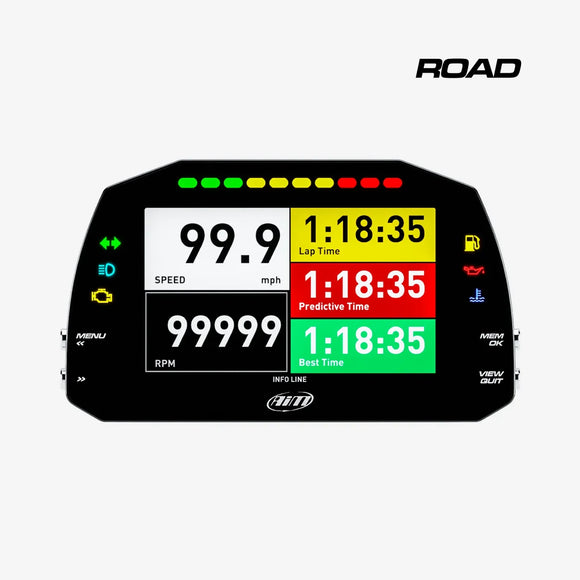

Delta Times
The Delta Times feature provides instant feedback on your performance, showing how your current timing compares to your best.
Set a reference lap and visualise where you are gaining and losing time. The integrated lights will display green or red accordingly.
![]()
![]()
Integrated Shift Lights & Customisable Alarms
