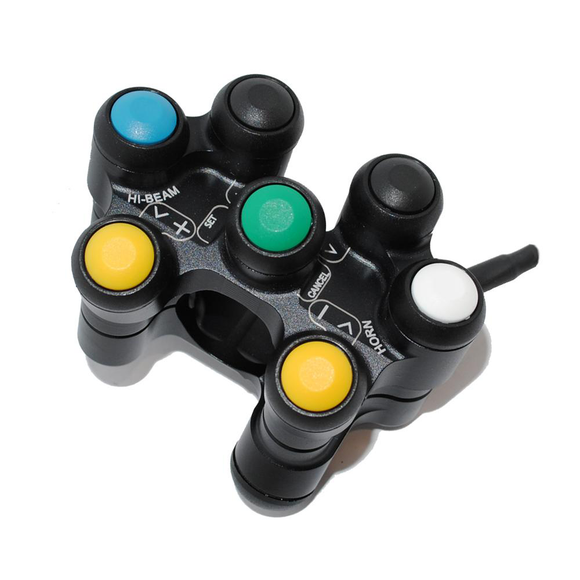

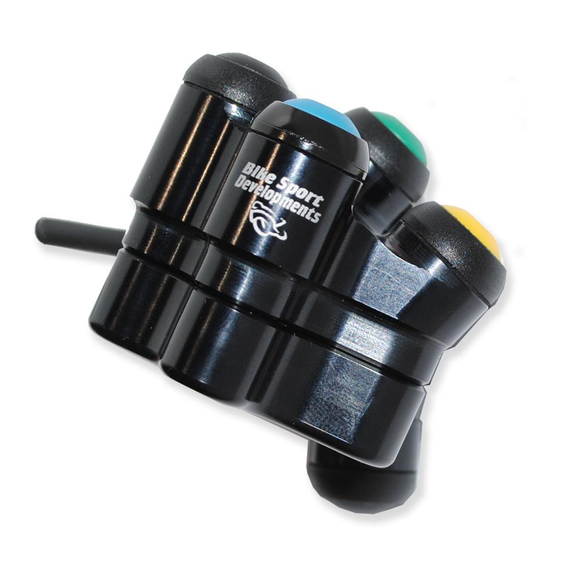

Ducati 1199 1299 Panigale R - BSD Aluminium - 8 function race switch - handlebar mount - All road and track functions

Make : DUCATI

Model : 1199R (after 2015) , 1299 , 1299 SL , 1299 FE

Year : 2015 onward

Part Number : BD-SW-8B-03

Number of switch functions : 8

Position : Left side

Road or Track : Road or track use

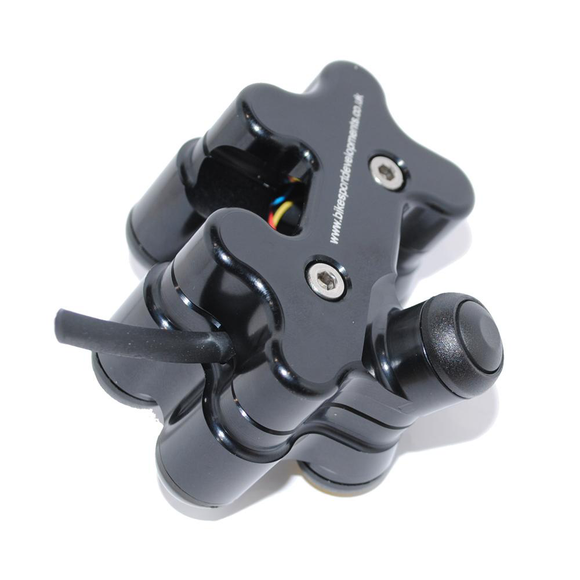

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

May be used with the standard right switch our or replacement switch

Requires a manual change over between road and track use via 'plug in' module

Can be ordered with all black switches

--

Functions :

• Mode Up/Down
• main beam off/on
• Flipper +
• Flipper -
• Horn
• Set / Cancel
• Left / Right turn
• Flash / Lap set

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving

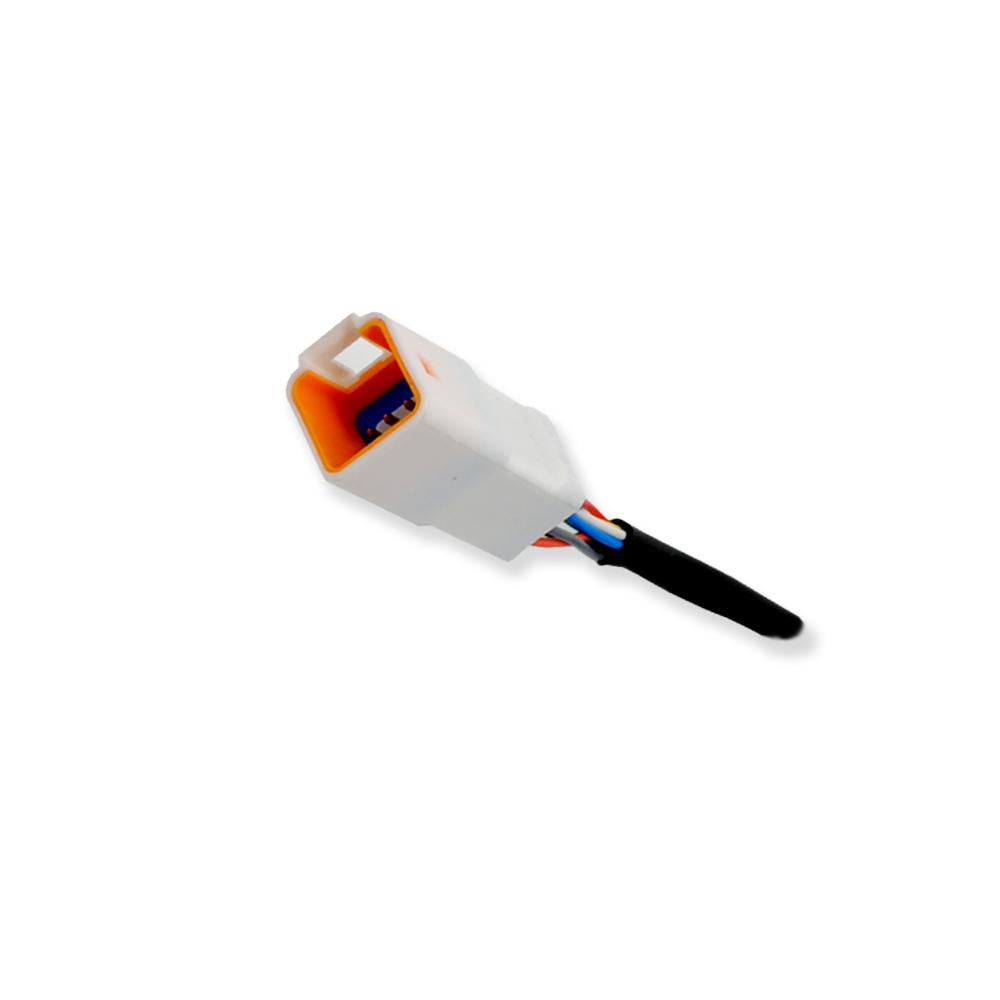

• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
