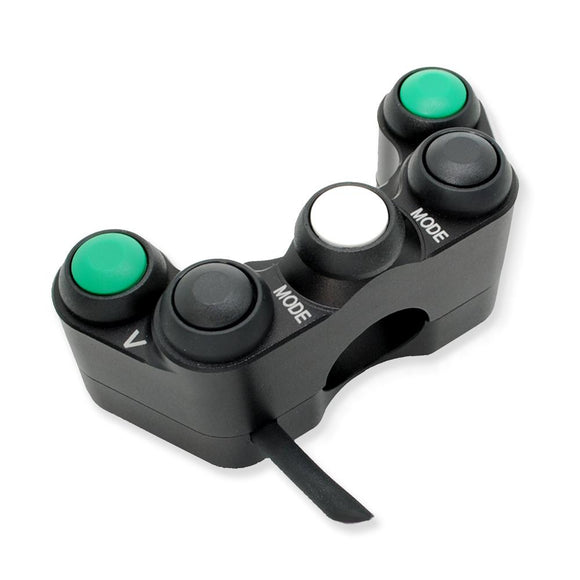

Ducati 1199 1299 Panigale R - BSD Aluminium - 5 function race switch - handlebar clamp mount - Flipper +/- Select Mode Up/Down

Make : DUCATI

Model : 1199R (after 2015) , 1299 , 1299 SL , 1299 FE

Year : 2015 onward

Part Number : BD-SW-5B-05

Number of switch functions : 5

Position : Left side

Road or Track : Track only

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

For the lap-Set function to work this must be used with the BD-SW-3B-06 right side switch

--

Functions :

• Mode Up/Down
• Select
• Flipper +
• Flipper -
• Set

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
