Make : DUCATI
Model : 899, 959, 1199, (1199R up to 2014)
Year : 2012 onward
Part Number : BD-SW-8B-01
Number of switch functions : 8
Position : Left side
Road or Track : Road or track use
Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts
Download the product : DATASHEET
--

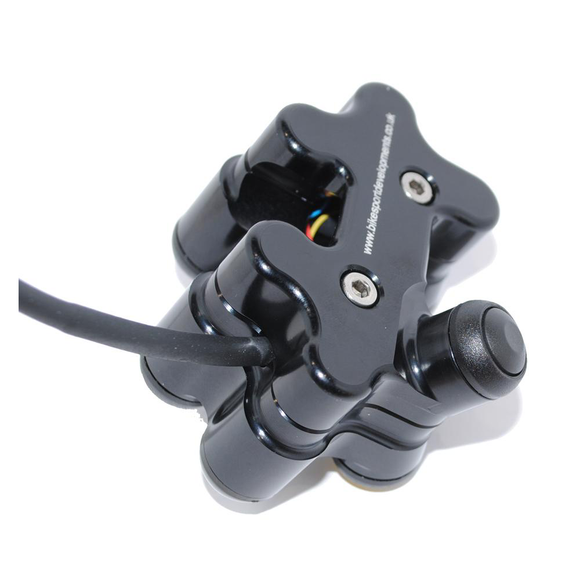

These traditionally styles race switches mount directly onto the handlebar.
This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.
May be used with the standard right switch our or replacement switch
Can be ordered with all black switches
--

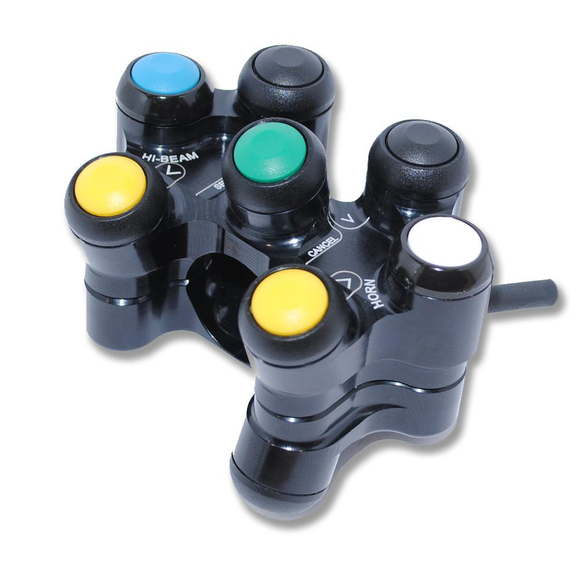

Functions :
- Mode Up/Down
- main beam off/on
- Horn
- Set / Cancel
- Left / Right turn
- Flash / Lap set
--
Construction / Notes:

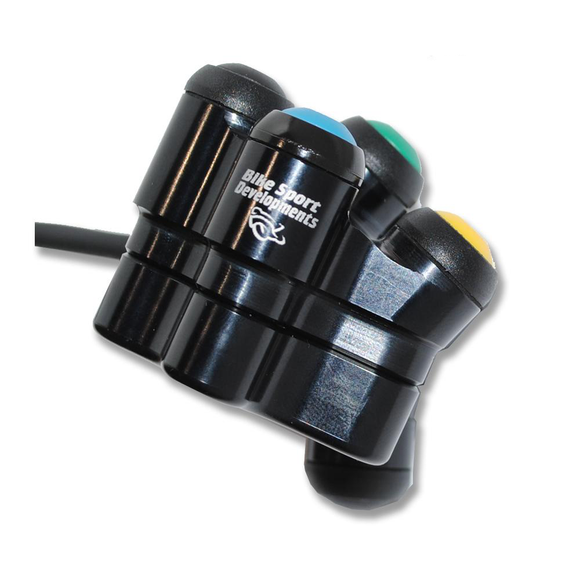

- Billet aluminium body
- IP 67 waterproof switches with gold plated contacts
- Raychem type 55 wire and DR25 sleeving
- Plug and play wiring
- Greater crash protection and electrical integrity
- May be repaired after crash damage
