Make : Ducati
Model : v2
Year : 2020 onward
Part Number : BD-SW-2BC-32
Number of switch functions : 2
Position : Right side
Road or Track : May be used on road or rack
Mounting type : Mounts directly onto the brake master cylinder
Download the product : DATASHEET
--
This switch is is a direct 'plug n play' replacement for the standard switch assembly.
--
Functions :
- Stop/Run
- Start
--

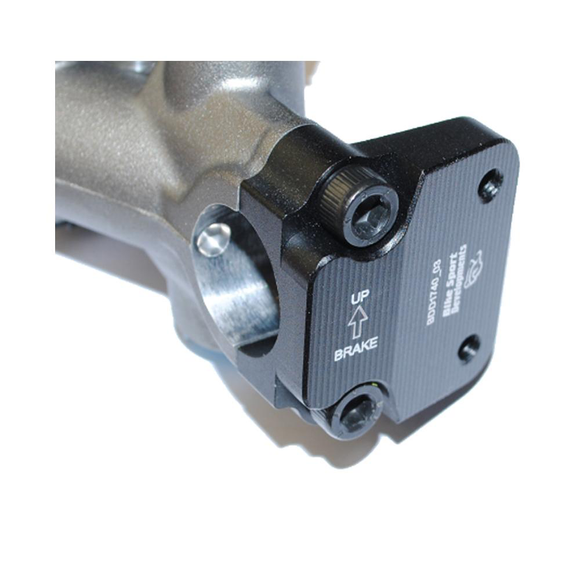

These 'Type C' switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp.
The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.
We have brake clamps for:
BR-A 32mm in-line bolt spacing
BR-B 30mm offset bolt spacing - Brembo XR , GP
BR-N 32mm in-line with a left offset for short brake levers Nissin / Brembo RC, RCS, Costa Corta
BR-F 30mm in-line as found on Accosato / Hel components
BR-J 32mm offset bolts spacing as found on Beringer components
BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)
Unless otherwise specified we will supply the BR-A clamp for this application.
Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly
Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake or clutch parts, or thumb brakes.
--
Construction / Notes:
- Billet aluminium body
- IP 67 waterproof switches with gold plated contacts
- Raychem type 55 wire and DR25 sleeving

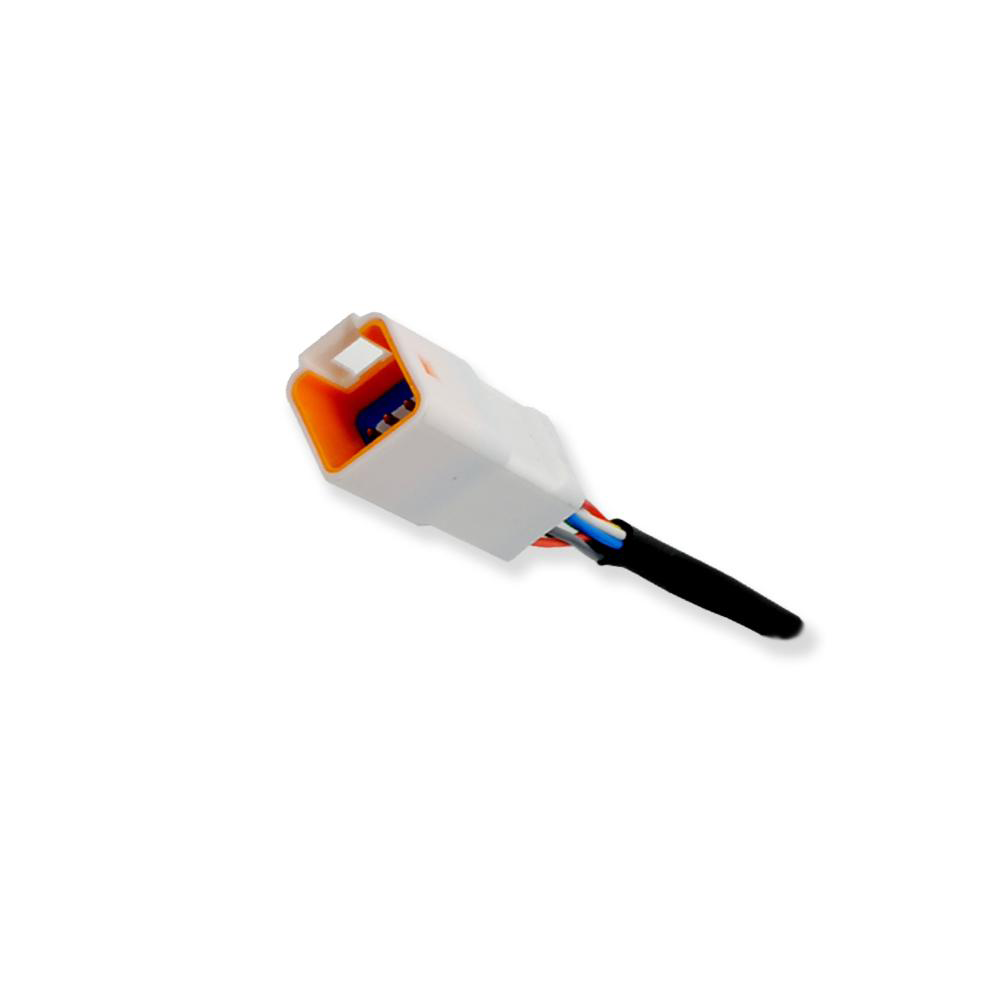

- Plug and play wiring
- Greater crash protection and electrical integrity
- May be repaired after crash damage
