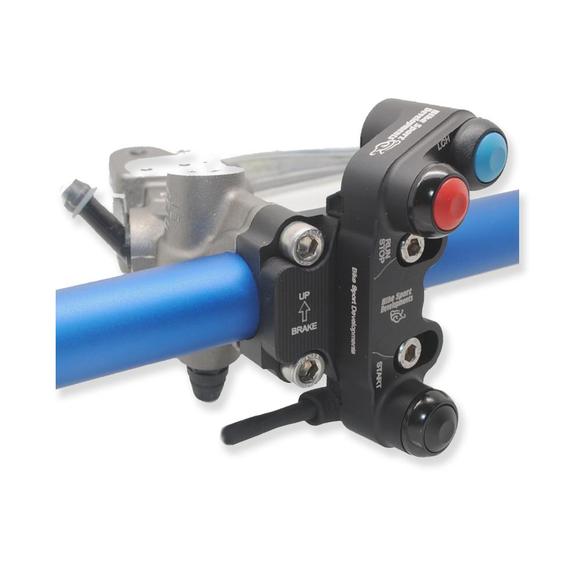

Kawasaki ZX-10R RR 2016 - 2020 - BSD Aluminium- 3 function race switch - brake mount - Stop/Run Start Launch

  • Sale
  • Regular price £246.00

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2016 to 2020

Part Number : BD-SW-3BC-07

Number of switch functions : 3

Position : Right side

Road or Track : Track only

Note : rain light wiring to be connected to the brake light circuit.

Mounting type : Mounts directly onto the brake master cylinder

Download the product : DATASHEET


This switch is is a direct 'plug n play' replacement** for the standard switch assembly.

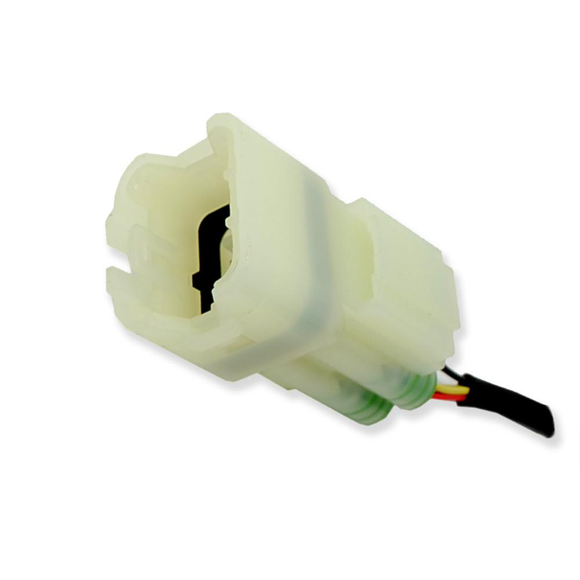

Loose connectors are supplied for linking the rain switch to the  brake light circuit

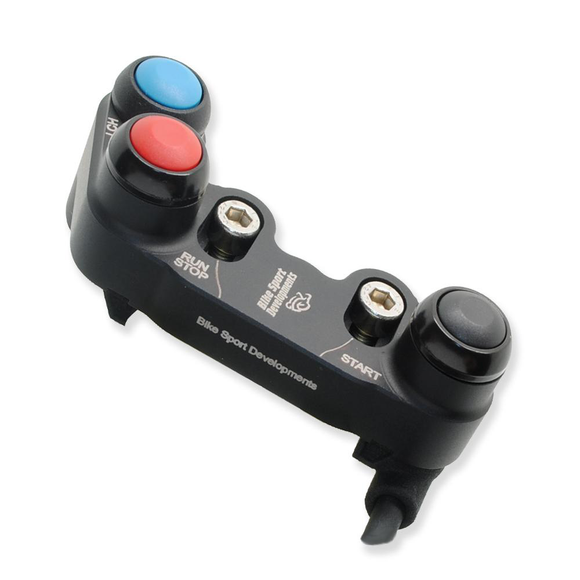

  • Stop/Run
  • Start
  • launch (lap set)

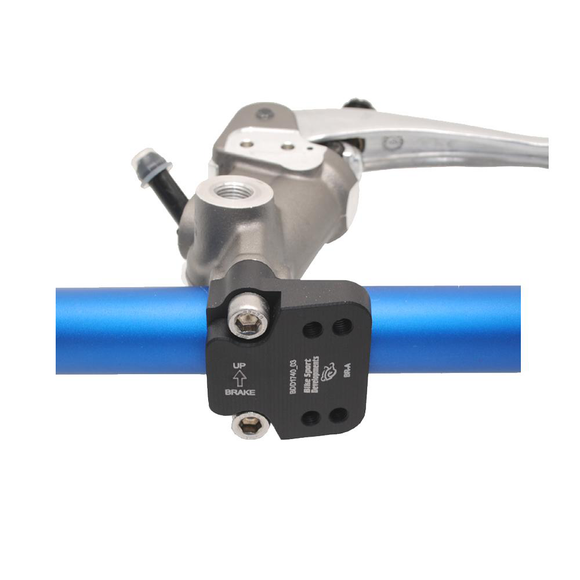

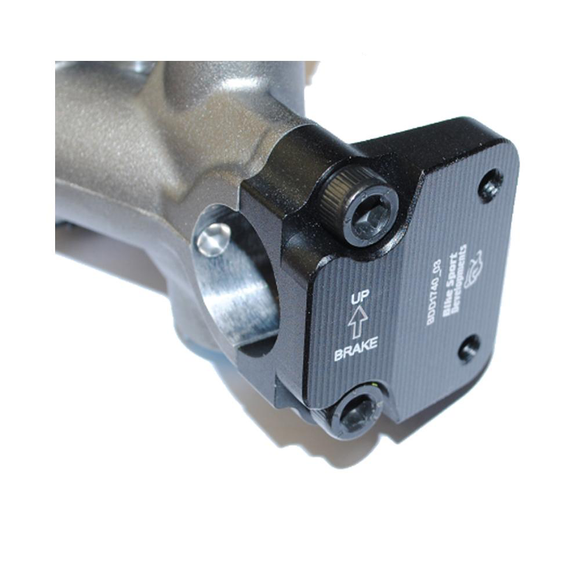

These 'Type C' switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp.

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have brake clamps for:

BR-A    32mm in-line bolt spacing

BR-B    30mm offset bolt spacing - Brembo XR , GP

BR-N    32mm in-line with a left offset for short brake levers Nissin / Brembo RC, RCS, Costa Corta

BR-F    30mm in-line as found on Accosato / Hel components

BR-J     32mm offset bolts spacing as found on Beringer components

BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake or clutch parts, or thumb brakes.


Construction / Notes:

  • Billet aluminium body
  • IP 67 waterproof switches with gold plated contacts
  • Raychem type 55 wire and DR25 sleeving
  • Plug and play wiring
  • Greater crash protection and electrical integrity
  • May be repaired after crash damage
