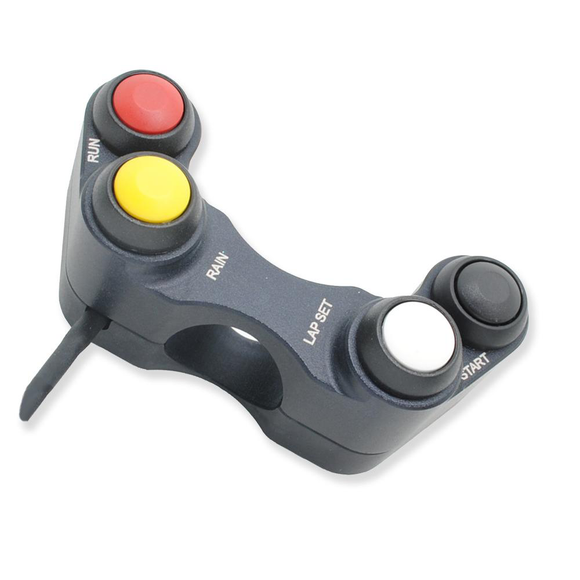

Kawasaki ZX-10R RR 2016 - 2020 - BSD Aluminium - 4 function race switch - handlebar mount - Stop/Run Start Launch Rain

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2016 to 2020

Part Number : BD-SW-4B-09

Make : Kawasaki

Model : ZX10R , ZX10RR

Year : 2016 to 2020

Part Number : BD-SW-4B-12

Number of switch functions : 4

Position : Right side

Road or Track : Both

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly

Rain switch is wired into the brake light circuit

--

Functions :

• Stop/run
• Start
• Launch (lap set)
• Rain switch

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving

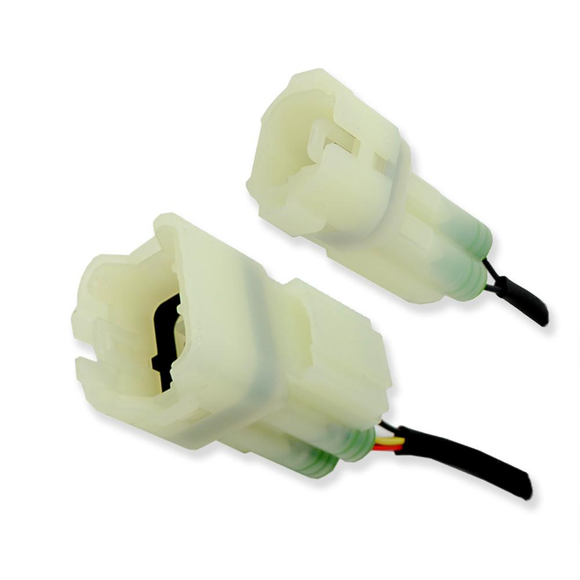

• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage

Number of switch functions : 4

Position : left side

Road or Track : Track only

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

--

Functions :

• Up
• Select
• Down
• Lap

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
