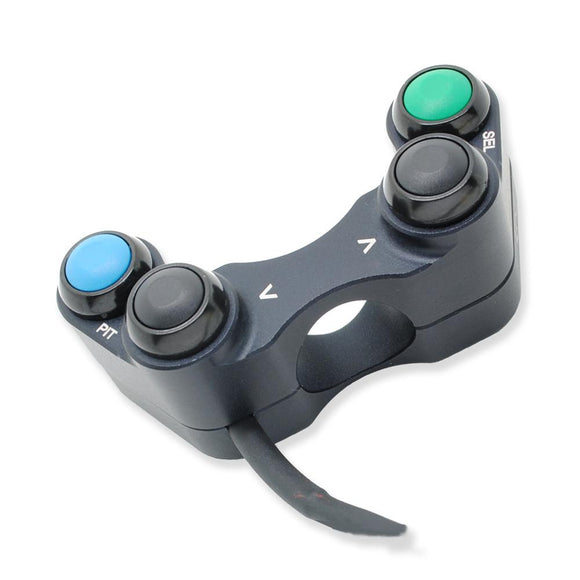

Kawasaki ZX-10R RR 'KIT ECU' 2016 to 2020 - BSD Aluminium 4 function race switch - handlebar mount - Up Select Down Pit
Kawasaki ZX-10R RR 'KIT ECU' 2016 to 2020 - BSD Aluminium 4 function race switch - handlebar mount - Up Select Down Pit
Kawasaki ZX-10R RR 'KIT ECU' 2016 to 2020 - BSD Aluminium 4 function race switch - handlebar mount - Up Select Down Pit

Kawasaki ZX-10R RR 'KIT ECU' 2016 to 2020 - BSD Aluminium 4 function race switch - handlebar mount - Up Select Down Pit

  • Sale
  • £220.00

Make : Kawasaki

Model : ZX10R , ZX10RR (KIT ECU only)

Year : 2016 to 2020

Part Number : BD-SW-4B-08

Number of switch functions : 4

Position : left side

Road or Track : Track only

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

For use with the 'KIT' ECU and wiring only to enable the pit speed limiter

--

Functions :

  • Up
  • Select
  • Down
  • Pit speed limit

--

Construction / Notes:

  • Billet aluminium body
  • IP 67 waterproof switches with gold plated contacts
  • Raychem type 55 wire and DR25 sleeving

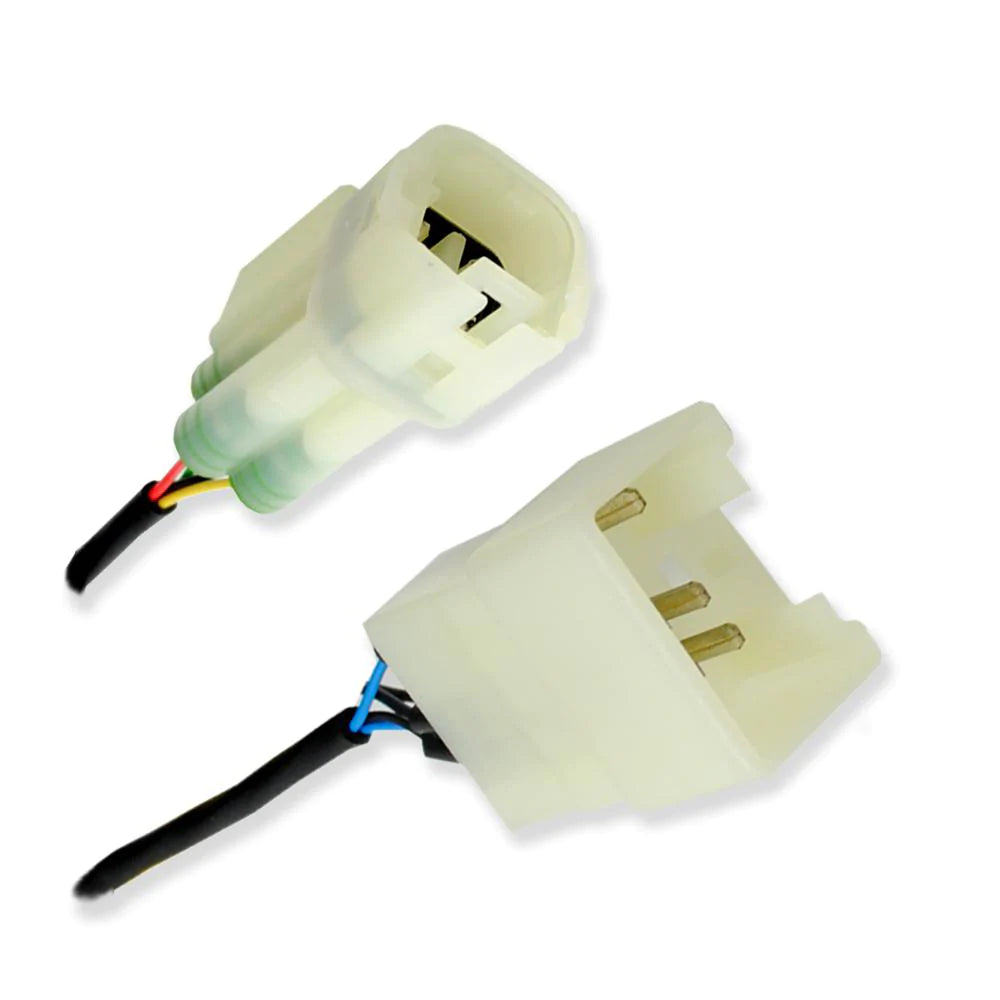

  • Plug and play wiring
  • Greater crash protection and electrical integrity
  • May be repaired after crash damage
