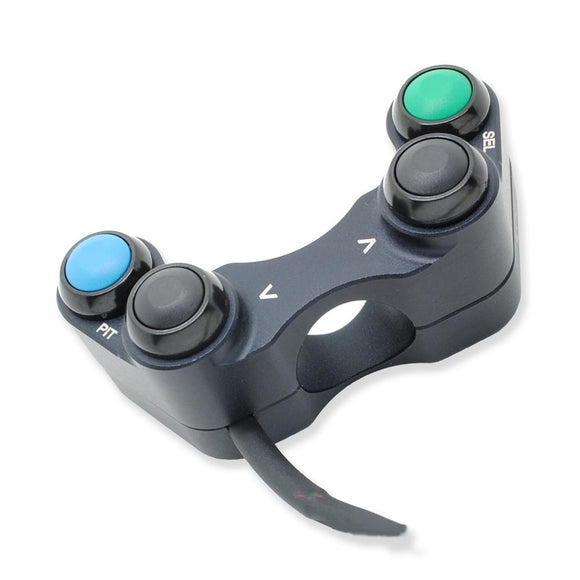

Suzuki GSX-R 1000 R 'KIT ECU' 2017 onward - BSD Aluminium - 4 function - Race switch - handlebar mount - Up Down Select Pit

Make : Suzuki

Model : GSXR 1000R , RR

Year : 2017 onward

Part Number : BD-SW-4B-16

Number of switch functions : 4

Position : Left side

Road or Track : Track only

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly**, retaining all controls needed for a track bike but without the controls needed on a road bike.

Only for use on 'KIT' ECU and wiring systems

--

Functions :

• Mode UP
• Mode Down
• Select

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving

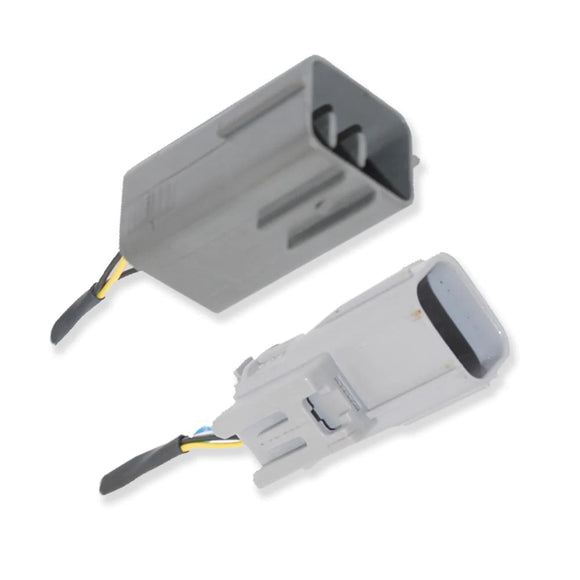

• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
