Suzuki GSX-R 1000 R 2017 onward - BSD Aluminium - 8 function - Race switch - handlebar mount - All road functions

Make : Suzuki

Model : GSXR 1000R , RR

Year : 2017 onward

Part Number : BD-SW-8B-02

Number of switch functions : 8

Position : Left side

Road or Track : Both

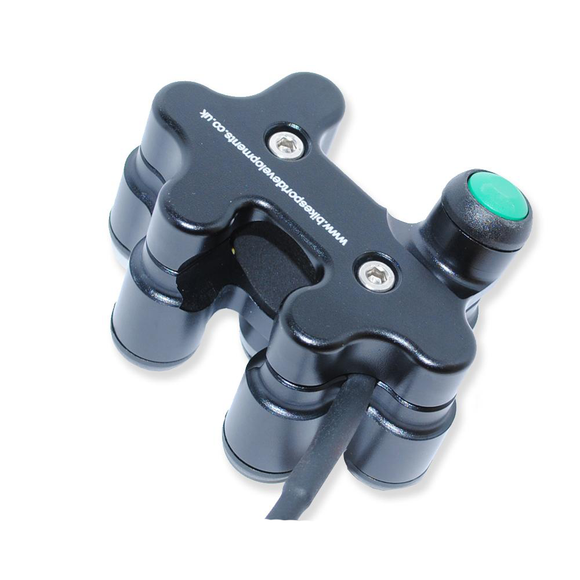

Mounting type : Clamps around the handlebar via front and rear body - 2 x M4 cap bolts

Download the product : DATASHEET

--

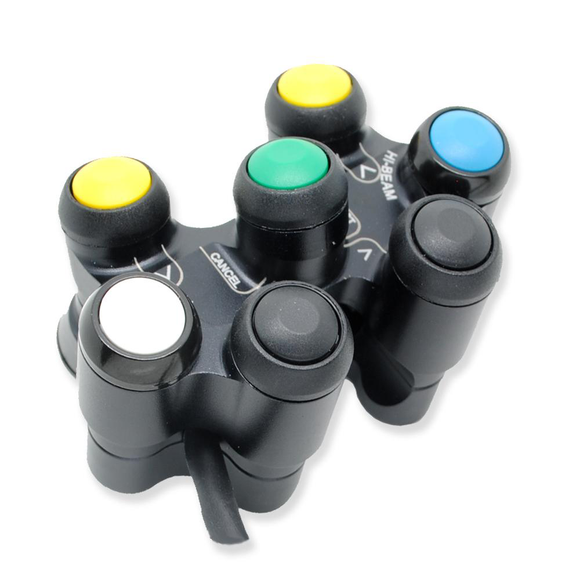

These traditionally styles race switches mount directly onto the handlebar.

This switch is is a direct 'plug n play' replacement for the standard switch assembly retaining all functions of the standard switch in a billet aluminium housing.

--

Functions :

• Mode UP
• Mode Down
• Select
• Left turn
• Right turn
• Horn
• Main beam
• Flash

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving

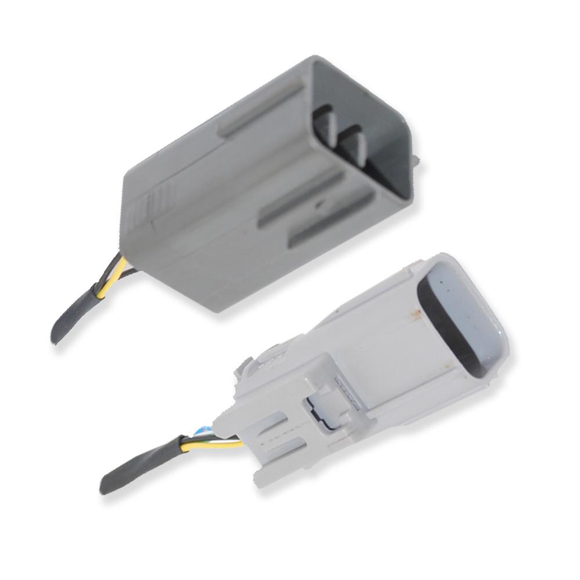

• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
