Racetorx Junction Valve.
Having your thumb brake or finger brake installed in conjunction with your rear master cylinder has never been easier!
Our Junction valves are dual-fitting kits.

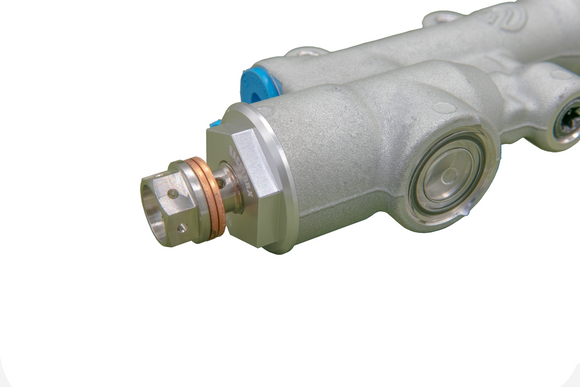

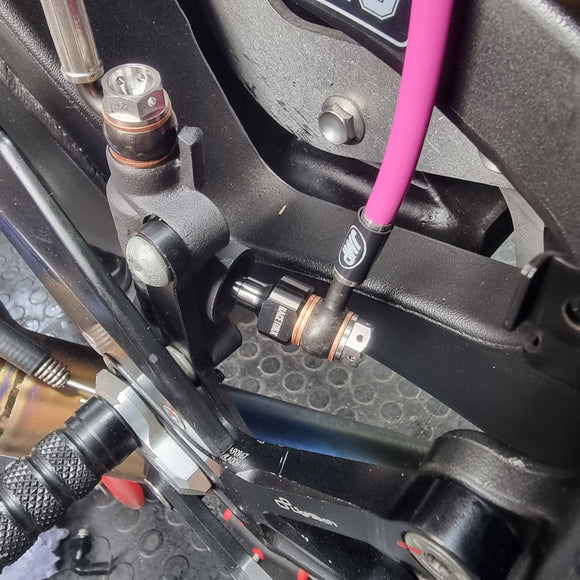

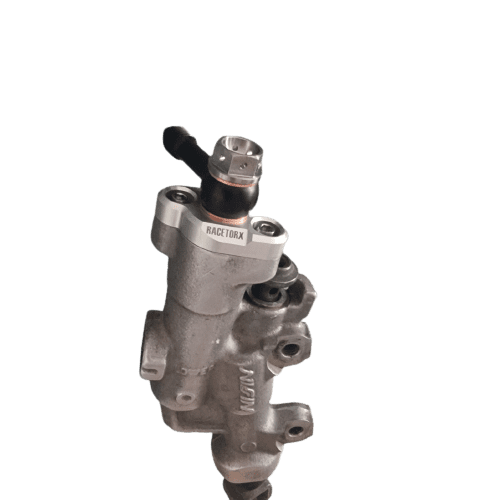

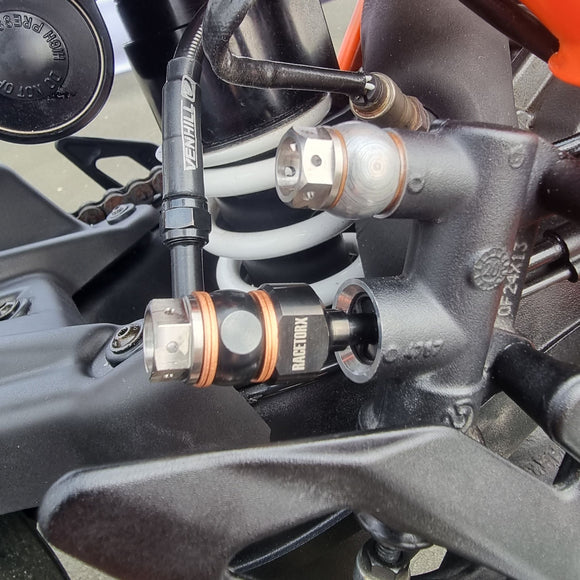

Junction valves go into the rear (foot) master cylinder and allow both Thumb brakes & scooter brakes to work in conjunction with the footbrake master cylinder.

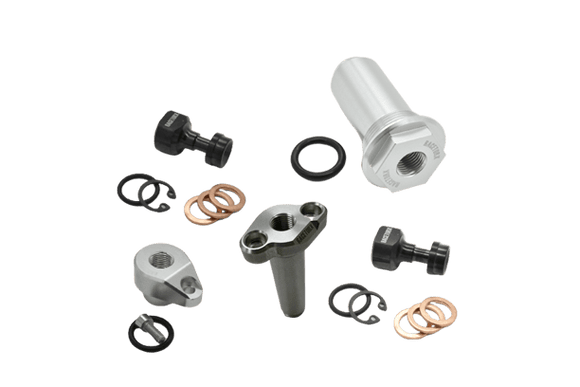

So far we offer 5 types-
- RTX450 which is used in the likes of Brembo Master cylinder Part number – 10850560

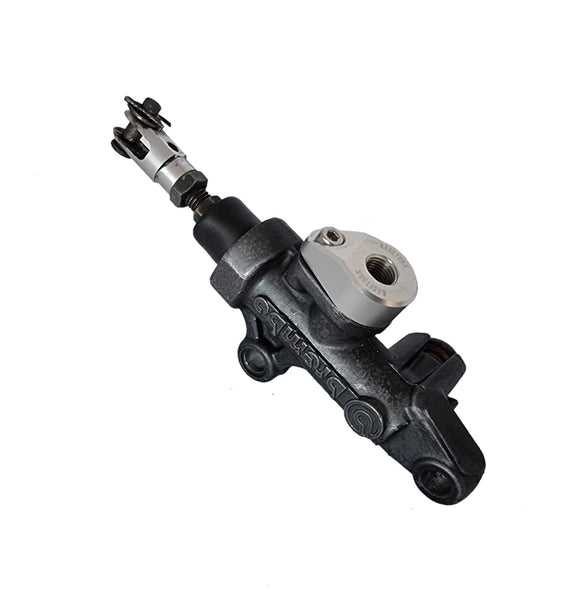

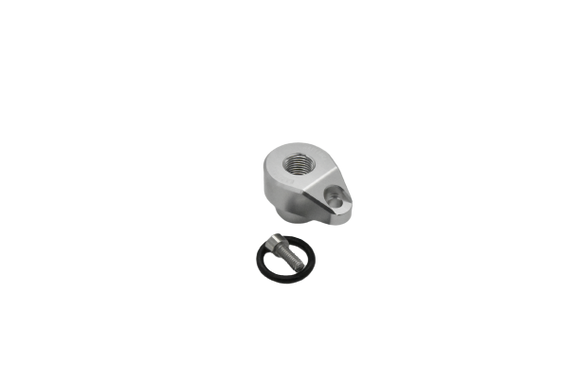

- RTX452 is a Teardrop shape with a M4 bolt this is used in Brembo, Nissin and aftermarket master cylinders

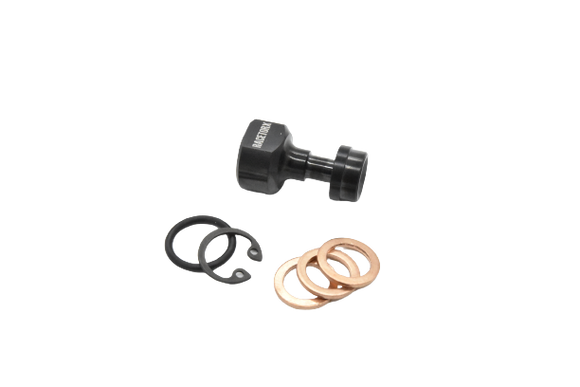

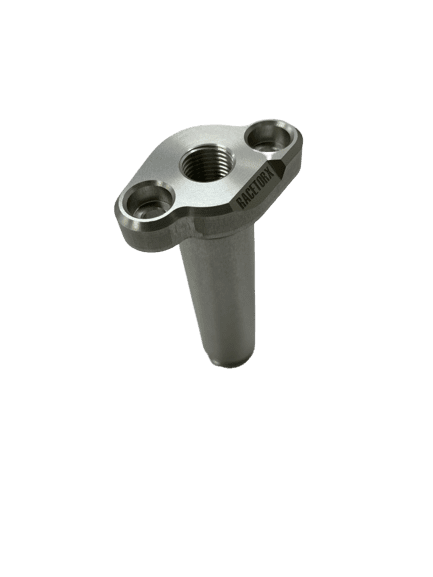

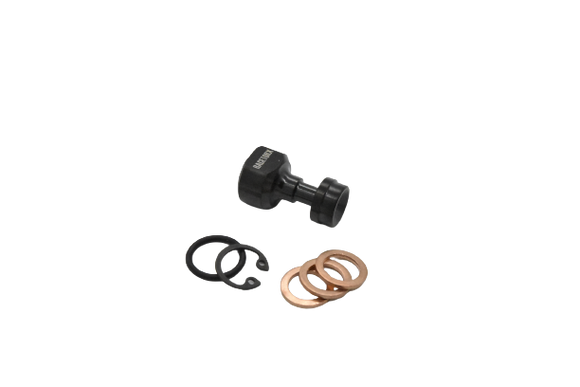

- RTX477 is the Titanium long neck type which fits in Nissin and aftermarket type master cylinders with a plastic nipple and circlip, ID = 18.5mm (Due to the size of the long neck type you require x4 standard copper washers or x2 2mm copper washers)
- RTX479 is the Titanium long neck type, this is suited for some Brembo & aftermarket type master cylinders with a plastic nipple that can spin, ID 14mm. (first of its kind) for OEM brembo masters like on the KTM superdukes etc) (Due to the size of the long neck type you require x4 standard copper washers or x2 2mm copper washers)
- RTX506 is used on Yamaha YZ and WR models which though they are in stock, there are two versions of the same master cylinder with very slight differences that we are still testing.
The Plastic nipple type master cylinders are pushed in with a rubber doughnut, you can pry these out with a set of players to fit the Longneck junction valves
Please contact us if you are unsure, See the list below for what fits what so far.
A DOUBLE BANJO ON THE REAR (FOOT) MASTER IS NOT THE SOLUTION AND WILL NOT WORK THIS IS WHY JUNCTION VALVES ARE REQUIRED.
|
Tenere 700 (NOT COMPATABLE) An alternative to be offered |
|
MT10 2016-2020 (NOT COMPATABLE) An alternative to be offered |
|
MT09 2016-2022 (NOT COMPATABLE) An alternative to be offered |
|
MT07 2014-2022 (NOT COMPATABLE) An alternative to be offered |
|
SXR 700 / 900 (NOT COMPATABLE) An alternative to be offered |
This is only a small few of the fitments we have listed, contact us to find out which suits your bike if unsure.
|
Fitment |
|
|
|
|
|
|
RTX450 |
RTX452 |
RTX477 |
RTX479 |
|
Aprilia |
|
|
|
|
|
|
Aprilia RSV4 |
|
|
Aprilia 660 |
|
|
Aprilia RV4 |
|
|
Aprilia Tuono 125 |
|
|
|
|
|
Tuono Gen2 |
|
|
|
|
|
RSV |
|
|
|
|
|
RSVR |
|
|
|
|
|
Falco |
|
|
|
|
|
Dosoduro 750 |
|
|
|
|
|
Dosoduro 1200 |
|
|
|
|
|
|
|
BMW |
|
|
|
|
|
|
|
|
BMW GS range |
S1000RR |
|
|
|
|
|
F800 |
|
|
|
|
|
R850R |
|
|
|
|
|
R1200 |
|
|
|
|
|
R9T |
|
|
|
|
|
|
|
Ducati |
|
|
|
|
|
|
|
|
|
All |
|
|
|
|
|
|
|
Honda |
|
|
|
|
|
|
|
MSX GROM 125 |
CRF 250 2020 |
|
|
|
|
CBR900RR 99 |
CBR1000RR 08 to present |
|
|
|
|
CB/CBF 125 19 |
CBR1000RR-R (SP) |
|
|
|
|
Hornet 600 CB600 |
|
|
|
|
|
Hornet 900 CB900 |
|
|
|
|
|
NC750x |
|
|
|
|
|
NT700v |
|
|
|
|
|
CB650 R/F |
|
|
|
|
|
929 |
|
|
|
|
|
CB1300 |
|
|
|
|
|
CB400 |
|
|
|
|
|
CB1000R |
|
|
|
|
|
CBR1000 93-99 |
|
|
|
|
|
CBR1000RR 04-07 |
|
|
|
|
|
|
|
|
|
HUSQVARNA |
|
|
|
|
|
|
125/250/300 14-17 |
|
|
|
|
|
FE 250 / 350 / 450 / 501 14-17 |
|
|
|
|
|
FC 250 / 350 / 450 2014-2020 |
|
|
|
|
|
|
|
|
|
|
Suzuki |
|
|
|
|
|
|
|
Hayabusa |
GSXR600 06-21 |
|
|
|
|
GSX 750 2019 |
GSXR750 06-21 |
|
|
|
|
GSXR125 |
GSXR1000 09-21 |
|
|
|
|
Bandit 400 |
|
|
|
|
|
GSXR600 97-05 |
|
|
|
|
|
GSXR750 97-05 |
|
|
|
|
|
GSXR1000 01-08 |
|
|
|
|
|
SV650 03-15 |
|
|
|
|
|
SV1000 03-07 |
|
|
|
|
|
|
|
|
|
Triumph |
|
|
|
|
|
|
|
|
Speed tripple |
|
|
|
|
|
Street tripple |
|
|
|
|
|
Speed 1200 |
|
|
|
|
|
Trident 660 |
|
|
|
|
|
|
|
|
Kawasaki |
|
|
|
|
|
|
|
|
ALL |
|
|
|
|
|
|
|
|
KTM |
|
|
|
|
|
|
KTM 250SX |
KTM 400 RXC |
|
KTM 400 SX |
|
|
KTM SXF 350 |
KTM 250 EXC |
|
KTM 690 SMC |
|
|
KTM 450 SXF RFS SXS |
|
|
KTM 1290 Super Duke 2015+ |
|
|
KTM 125 SX |
|
|
KTM EXC 200 |
|
|
125/200 EXC 14-16 |
|
|
KTM SXC 625 |
|
|
250/300 EXC 14-20 |
|
|
ktm LC4 580 600 620 640 |
|
|
150 EXC 2020 |
|
|
SX-F 400 / 520 2001-2002 |
|
|
125/200 EXC 14-16 |
|
|
EXC-F 450 / 525 2003 |
|
|
EXC-F 250 / 350 / 450 / 500 2014-2020 |
|
|
SX 125 / 250 2001-2003 |
|
|
SX-F 250 / 350 / 450 2014-2020 |
|
|
EXC-F 400 / 450 / 520 2001-2002 |
|
|
SX 125/150/250 2014-2020 |
|
|
KTM Super Duke R 1290 Gen1 2014-2016 |
|
|
|
|
|
KTM Super Duke R 1290 Gen2 2016-2019 |
|
|
|
|
|
KTM Super Duke R 1290 Gen3 2020-2022 |
|
|
|
|
|
KTM Super Duke RR 1290 2021-2022 |
|
|
|
|
|
KTM Super Duke 1290 GT 2015-2022 |
|
|
|
|
|
KTM Super 1290 Adventure 2015-2021 |
|
|
|
|
|
KTM 1090 Adventure |
|
|
|
|
|
KTM 1190 Adventure |
|
|
|
|
|
KTM Duke 690 SMCR 2015+ |
|
|
|
|
|
KTM Duke 790 Adventure (R) |
|
|
|
|
|
KTM Duke 790 2018-2020 |
|
|
|
|
|
KTM Duke 890 2020-2021 |
|
|
|
|
|
Husqvarna 701 Supermoto 2016+ |
|
|
|
|
|
Husqvarna 701 Vitpilen 2018+ |
|
|
|
|
|
Husqvarna 701 Svartpilen 2018+ |
|
|
|
|
|
|
|
MV |
|
|
|
|
|
|
|
|
All |
|
|
|
|
|
|
|
|
Yamaha |
|
|
|
Tenere 700 (NOT COMPATABLE) |
|
|
|
R1 98-03 |
R1 2004 - 2006 (Please check first) |
MT10 2016-2020 (NOT COMPATABLE) |
|
|
|
R6 99-02 |
R1 2007 -2022 |
MT09 2016-2022 (NOT COMPATABLE) |
|
|
|
|
|
MT07 2014-2022 (NOT COMPATABLE) |
|
|
|
|
|
SXR 700 / 900 (NOT COMPATABLE) |
|
|
|
|
|
|
|
|
|
|
|
R6 2003-2022 |
|
|
|
|
|
XT660 |
|
|
|
|
|
fz6 07-09 |
|
|
|
|
|
fz1000 01-12 |
|
|
|
|
|
tdm 850/900 96-02 |
If you have any additional questions over this or any other tuning modification, please do not hesitate to get in touch. Kind regards P3 Tuning Ltd
