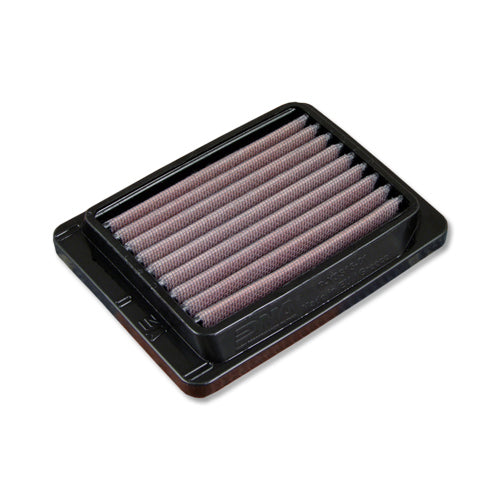

YAMAHA MT-03 300 (16-22) DNA PERFORMANCE AIR FILTER

  • Sale
  • Regular price £64.30


Features

Make: Yamaha

OEM Air Filter Air Flow: 73.46 CFM

DNA Air Filter Air Flow: 107.00 CFM

DNA Increased Air Flow: 45.66%

DNA Filtering Efficiency: 98-99%


Product Information

  • This filter features DNA's advanced FCd (Full Contour design) specially designed only for the YZF R3 – R25.
  • The filtering efficiency is extremely high at 98-99% filtering efficiency (ISO 5011), with 4 layers of DNA Cotton.
  • The flow of this DNA Fcd filter is high, 45.66 % more than the Yamaha stock paper filter!
  • DNA Fcd air filter flow: 107.00 CFM (Cubic feet per minute) @1,5"H2O corrected @ 25degrees Celsius.
  • Yamaha stock paper filter: 73.46 CFM (Cubic feet per minute) @1,5"H2O corrected @ 25degrees Celsius.
  • This DNA filter is designed as a High flow filter for road and race use.



            The Anatomy of a DNA High Performance Filter

            This is what Power is made of!

            A DNA High Performance Filter is a high quality, next generation multilayer cotton gauze,flameproof, oil impregnated air filter.

            FCD_Article

            1. The DNA Cotton

            FCD_Article_Small_1

            This very special cotton is designed by DNA's R&D engineers for High Performance filtering purposes. The basic media is a non woven surgical cotton gauze with a modified TEX & THREAD, with extremely high strength of break. This unique cotton media, actually is a "hairy hybrid" featuring extremely high air flow rates and excellent filtering efficiency that exceeds 98%.


            2. The DNA Wire Mesh

            FCD_Article_Small_2

            The DNA wire mesh, is a very special material designed by DNA's R&D engineers. Made out of marine grade 5000 series Aluminum, features a unique "wrap & fill" and precisely calculated wire diameter, to have the necessary high tensile strength and elasticity to last a lifetime. Additionaly it is protected against oxidation by a fine layer of epoxy coating. The DNA wire mesh is designed to perfectly support the cotton layers and at the same time not restrict the air flow.


            3. The DNA Filtering Media

            FCD_Article_Small_3

            The DNA Filtering Media consists of 4 layers of DNA cotton, sandwiched between 2 layers of DNA wire mesh, precisely pleated all together. We produce a very wide selection of media, starting from 8 mm to 50 mm height, with an infinite size of "Pitch". Actually we can choose from an unlimited combination of DNA Filtering Media when designing a new filter. Another important feature of our filtering media is the "Large pleat edge radius". This feature allows the edge to be an active part of the filtering media, instead of a "dead" inactive area as our competitors is. The result is a unified high air flow of the filter. The only drawback of this design is that the media is very sensitive during production before molding and must be handled with extreme care, increasing the production cost.


            4. The DNA Filter Oil

            FCD_Article_Small_4

            This is an extremely important part of the DNA filter. As soon as the DNA Oil is added to the cotton media, the cotton is "static charged" and transformed into an unbeatable filtering material! To achieve this fantastic result we have developed a unique air filter oil formula. The specifications of our DNA Air Filter Oil are as impressive as our filters are. Humidity will not attack the oil, even if the filter is submersed in water. The flow of the filter remains unchanged even under extreme rainy conditions with high humidity. (We have seen many competitors' filters transformed into a "milky mess" when it rains, severely reducing the performance of the engine). The oil has low viscosity, plus very high temperature resistance and stability. It will uniformly spread and stay on the filter regardless the temperature. Additionaly, it is UV resistant and easily soluble to assist cleaning the filter.



            FCD_Article_Small_7

            DNA Test & Results

            The DNA Flow and Dyno Tests.

            We test every single filter. Satisfaction guarantied.

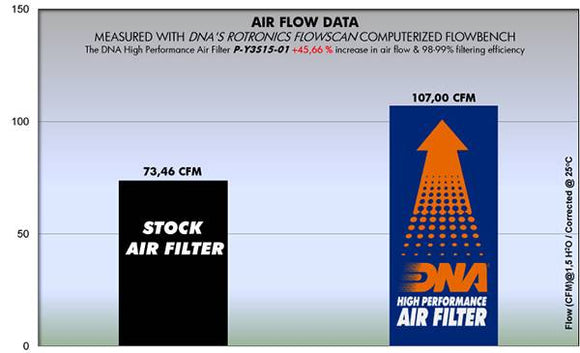

            The DNA Air Flow Tests

            For the air flow tests, we use the most advanced flow bench available today.

            The ROTRONICS FlowScan, is a totally computerized flow bench that measures:

            • Mass of the air,
            • Flow of the air,
            • Temperature of the air,
            • Absolute air pressure,
            • Differential air pressure,
            • Speed of the air at various points (Pitot tubes),
            • Absolute humidity of the air.

            The complete procedure is automated and computer controlled, eliminating human errors.
